Arduino Due without Headers A000056

Availability:

Available on backorder


  1. Microcontroller: AT91SAM3X8E
  2. Operating Voltage: 3.3V
  3. Input Voltage (recommended): 7-12V
  4. Input Voltage (limits): 6-16V
  5. Flash Memory: 512 KB all available for the user applications
  6. SRAM: 96 KB (two banks: 64KB and 32KB)
  7. Clock Speed: 84 MHz

3,899.00 4,369.00

Available on backorder

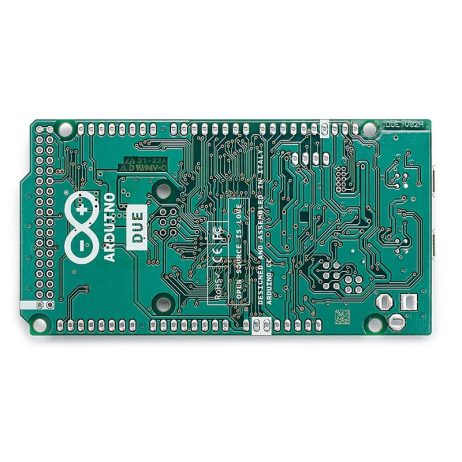

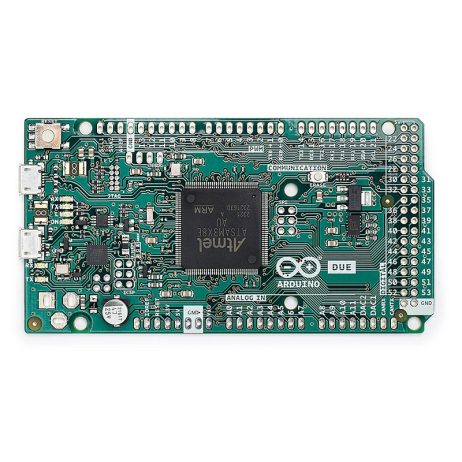

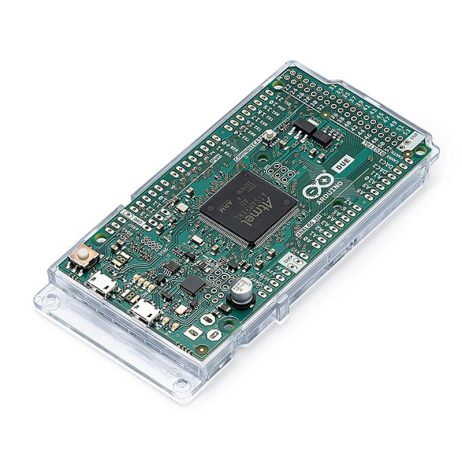

The Arduino Due without Headers is a microcontroller board based on the Atmel SAM3X8E ARM Cortex-M3 CPU. It is the first Arduino board based on a 32-bit ARM core microcontroller. It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), an 84 MHz clock, an USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, a power jack, an SPI header, a JTAG header, a reset button, and an erase button.

The board contains everything needed to support the microcontroller; simply connect it to a computer with a micro-USB cable or power it with an AC-to-DC adapter or battery to get started. The Due is compatible with all Arduino shields that work at 3.3V and are compliant with the 1.0 Arduino pinout.

The Due follows the 1.0 pinout:

  1. TWI: SDA and SCL pins that are near the AREF pin.
  2. IOREF: allows an attached shield with the proper configuration to adapt to the voltage provided by the board. This enables shield compatibility with a 3.3V board like the Due and AVR-based boards which operate at 5V.
  3. An unconnected pin, reserved for future

 Pinout Diagram: Arduino Due

Arduino Arduino 3




Specification:

Microcontroller AT91SAM3X8E
Operating Voltage 3.3V
Input Voltage (limits) 6-16V
Digital I/O Pins 54 (of which 12 provide PWM output)
Analog Input Pins 12
Analog Output Pins 2 (DAC)
Total DC Output Current on all I/O lines 130 mA
DC Current for 3.3V Pin 800 mA
DC Current for 5V Pin 800 mA
Flash Memory 512 KB all available for the user applications
SRAM 96 KB (two banks: 64KB and 32KB)
Clock Speed 84 MHz
Length 101.52 mm
Width 53.3 mm
Weight 36 g
Shipping Weight 0.015 kg
Shipping Dimensions 12 × 6 × 2.5 cm

Features:

  1. It has 54 digital input/output pins (of which 12 can be used as PWM outputs)
  2.  12 analog inputs
  3.  4 UARTs (hardware serial ports)
  4. an 84 MHz clock, a USB OTG capable connection.

Package Includes:

1 x Arduino Due without Headers A000056
